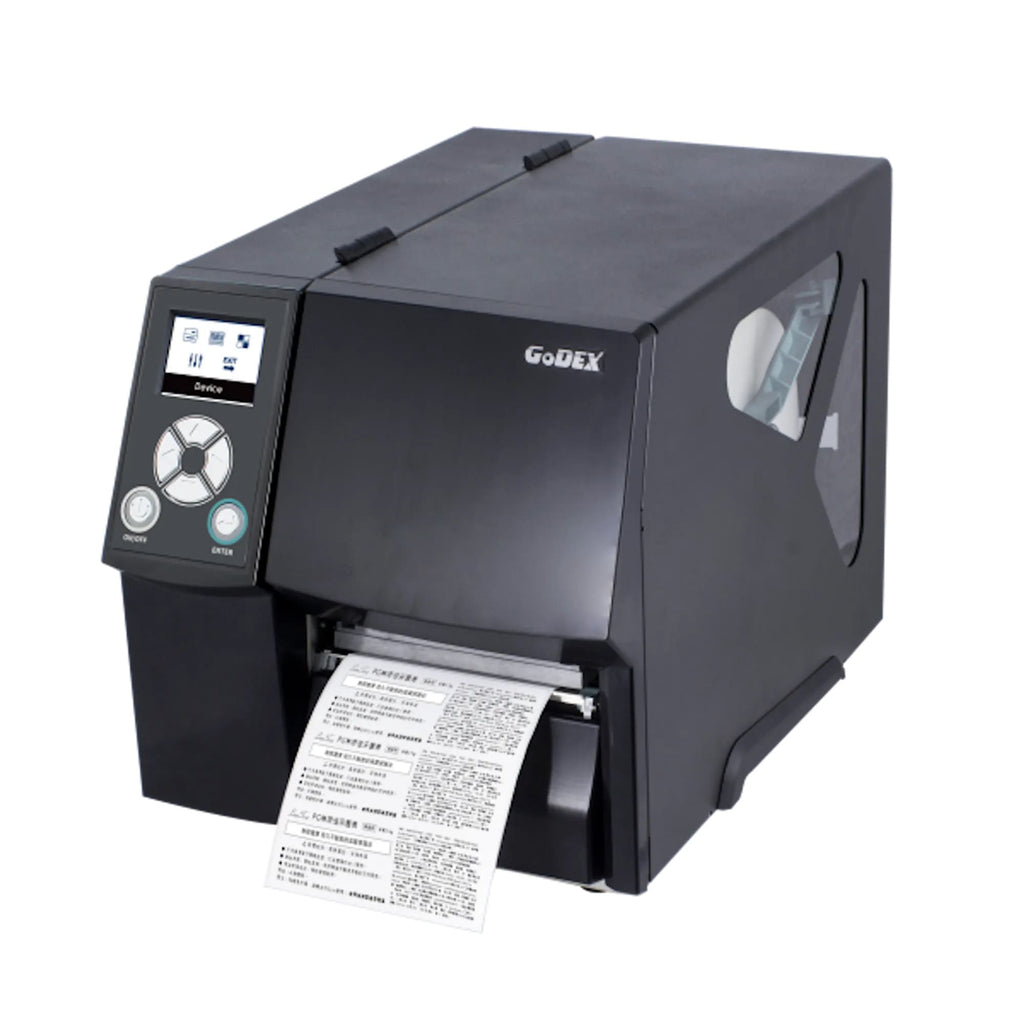

GoDEX ZX420i Compact Industrial Label Printer
GoDEX ZX420i Compact Industrial Label Printer
GoDEX ZX420i Compact Industrial Label Printer
GoDEX ZX420i Compact Industrial Label Printer
GoDEX ZX420i Compact Industrial Label Printer
GoDEX ZX420i Compact Industrial Label Printer

GoDEX ZX420i Compact Industrial Label Printer


  • Sale
  • $1,250.00 AUD
Tax included. Free Australian shipping.

203DPI Compact Robust 4″ DT/TT – Light Industrial Label Printer

Innovating upon extensive customer feedback; GoDEX’s most cost-effective and space-saving Industrial printers, the ZX400i series, integrates industrial utility with its high performance and exquisite design. The ZX400i series not only remains classic in its design, but also provides multiple outstanding features in this new model.

Labels: Many Label sizes are available for this printer. For the shipping labels compatible with this printer, see here

Features:

  • Multiple connectivity options
  • Auto Calibration button
  • A full line of accessories
  • Easy ribbon/ media loading
  • Full-range adjustable label sensor
  • 32-bit CPU that offers fast”first label out” throughput
  • Print speed – up to 6 ips
  •  Color TFT LCD and operation panel for easy and intuitive operation

Specifications:

Print Method Thermal Transfer / Direct Thermal
Resolution 203 dpi (8 dots/mm)
Print Speed Up to 6 IPS (152mm/s)
Print Width 4.25″ (108 mm)
Print Length Min. 0.16″ (4 mm)** – Max. 157.44″ (3999 mm)
Processor 32-bit RISC CPU
Memory Flash: 256 MB Flash (60 MB for user storage)
SDRAM: 32 MB
Interfaces Serial port: RS-232 (DB-9)
USB 2.0 Device port (B-Type)
USB Host port (A-Type)
IEEE 802.3 10/100Base-Tx Ethernet print server (RJ-45)
Ribbon Types : Wax, wax / resin, resin
Length : Max. 1476′ (450 m)
Width : 1.18″ Min. – 4.33″ (30 mm – 110 mm) Max.
Ribbon Roll Diameter : 3″ (76.2 mm)
Core Diameter : 1″ (25.4 mm)
Media Types : Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width : Min. 1″ (25.4 mm) – Max. 4.64″ (118 mm)
Thickness : Min. 0.003″ (0.076 mm) – Max. 0.01″ (0.25 mm)
Label Roll Diameter : Max. 8″ (203.2 mm) with 3″ (76.2 mm) core
Max. 6″ (152.4 mm) with 1.5″ (38.1 mm) core
Max. 5″ (127 mm) with 1″ (25.4 mm) core
Core Diameter : Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm)
Languages
(auto switching)		 EZPL, GEPL, GZPL, GDPL
(Godex, Eltron, Zebra, and Datamax)
Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
Download Fonts Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Asian fonts: 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001)
0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Codepages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)
Barcodes 1-D Bar codes:
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 and 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 and 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight
2-D Bar codes:
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite
RTC (Real Time Clock) Standard
Control Panel Color TFT LCD with navigation button
Power on/standby button with green color LED backlight
Calibration button at rear panel
Control key : FEED / PAUSE / CANCEL with dual color LED
backlight: Ready (Green); Error (Red)el
Options Cutter (Dealer Install)
Parallel port adaptor module (Centronic female 36-pin)(Dealer Install)
BT (Dealer Installer)
Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install)
External label rewinder
Label Dispenser (Dealer Install)
External label unwinder
External label rewinder


Which Printer to I need?

Printer Model Best Use Cases
GoDEX DT4 Range
  • Direct Thermal
  • Great for light printing of shipping labels and barcode labels
  • Up to 4-inch
GoDEX RT700+
  • Direct Thermal + Thermal Transfer
  • Great for medium-heavy desktop (general) printing
  • Up to 4-inch
GoDEX ZX420i
  • Direct Thermal + Thermal Transfer
  • Great for light-medium use industrial printing
  • Up to 4-inch
GoDEX ZX1200Xi
  • Direct Thermal + Thermal Transfer
  • Great for medium-heavy use industrial printing
  • Up to 4-inch



Terminology:

Direct thermal printing is great for light-medium durability of print.  All shipping labels are direct thermal (as they are only needed for a short timeframe during shipping).

Thermal transfer printing is great for high durability of print. Product barcode labels tend to be printed using thermal transfer (long life span and different conditions).
